coil transfer cart on rail

6 tons explosion proof coil transfer cart stepless speed battery powered is a customized spraying furnace support carrier of mainly used for the use of high-temperature spraying furnace production workshop and coil transfer. Due to the harsh production environment and explosive conditions in the customer’s paint furnace production workshop, we also use high-temperature explosion-proof designs and devices, heat conduction and heat dissipation grid bodies, explosion-proof wheels and roller devices. In order to allow customers to better transport the workpiece material, each carrier uses two sets of rollers (active and passive) devices, and the distance can be adapted to different sizes of the product. Stepless speed regulation, low noise, safe and stable transportation operation.

12 tons heavy duty automatic coil transfer cart electromagnetic brake stepless speed, DC motor speed regulation drive technology, multi-wheel hydraulic steering technology and wire control and remote control dual operation mode. Solid rubber wheels operate directly on the ground, operate without site restrictions, and will not damage the ground. Bidirectional drive and 360° in-situ rotation are also possible.
Applications: Aerospace, military, machinery manufacturing, automotive industry, heavy industry manufacturing, mold manufacturing, engineering machinery, shipbuilding, port yards, steel plate distribution, iron and steel metallurgy, mining transportation and other industries.

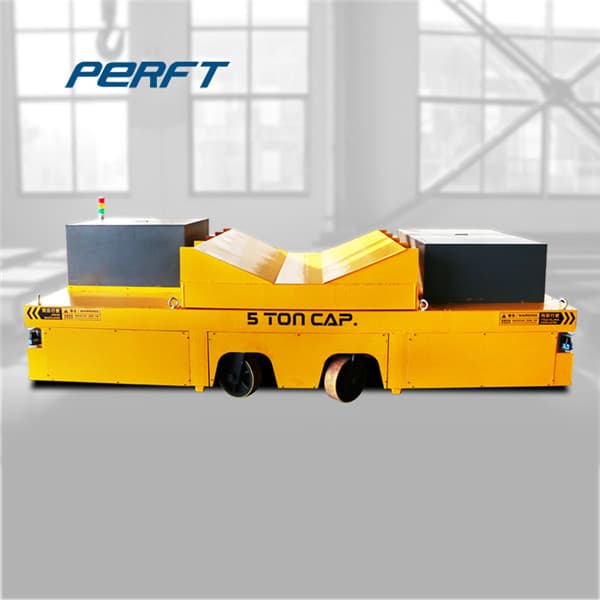

In order to meet the needs of steel transportation, we have designed a variety of electric power billet coil transfer car for steel plants to make transportation more convenient and use frequent. More importantly, multi-point security protection not only improves the safety factor, but also has been praised by customers around the world.Electric power billet coil transfer car for steel plants can be used for non-short-distance transportation and there is no frequency limit for use.
Its application scope includes port transportation, automotive field, steel, steel, heavy industry, light industry, chemical industry, mining, shipbuilding, engineering, aerospace, coal, nuclear energy, water conservancy engineering and so on. This cable reel blank transfer vehicle obtains AC 380v power through a cable reel device mounted on the bottom of the car. The motor is controlled by a power supply via the AC motor control system. Through the principle, we can make the billet transfer trolley start, stop, forward, backward and so on.

Coil transfer cart on rail without maintenance lead-acid battery as the power source, through the remote control to send out the start, stop, forward, backward, left turn, right turn, speed regulation and other commands, the electrical control system to give orders to the DC motor to drive the electric flat car to run a variety of instructions, the operation process, electrical equipment, lines are subject to failure, the current will exceed the work range and limit of the equipment allowed, which requires a group can detect these fault signals, and can automatically adjust the equipment and lines.
Coil transfer cart on rail load performance is good, load mode is through the steering wheel guidance direction and fixed wheel together with the load weight, reducer will magnify the torque and provide to the fixed wheel, the use of LED sound and light alarm device as the operation and warning signs, external power supply of intelligent charger, transported in a variety of large workshops, automotive mold, material transfer, casting mold plant, etc..

The aluminium product manufacturing industry coil transfer cart on rail uses the battery as the power source to provide power for the DC traction motor and drive the flat car. Aluminium product manufacturing industry coil transfer cart on rail has the following advantages: no insulation requirements for the track, the driving distance is not limited, can drive on curves and turnouts, maneuverable and flexible, can be interchanged between multiple tracks, high safety performance, wide range of application. The car has the advantages of easy to use, strong bearing capacity, durability, convenient maintenance and long service life. The frequent handling of heavy loads in and between factories has become a means of transportation for many enterprises.

Battery power 25 ton on rails aluminium coil transfer car exterior dimensions
The shape and size of the flatbed car should first be selected according to the workpiece to be transported, the larger the better.
Too much material is wasted and the cost is relatively high. If the contact surface between the transported workpiece and the battery power 25 ton on rails aluminium coil transfer car table is flat, the battery power 25 ton on rails aluminium coil transfer car form factor is better set and the table size should be slightly larger than the transported workpiece size.

The large dimension heavy load industrial steel coil railway trolley cable reel power has the following advantages.
1. Large dimension heavy load industrial steel coil railway trolley cable reel power cannot rely on guiding devices.
2. Large dimension heavy load industrial steel coil railway trolley cable reel power can be driven in both directions and steered 360 degrees
3. Large dimension heavy load industrial steel coil railway trolley cable reel power with DC drive and large load capacity.
4. Large dimension heavy load industrial steel coil railway trolley cable reel power with small turning radius and flexible operation
5. Large dimension heavy load industrial steel coil railway trolley cable reel power small braking distance, safe and reliable.
6. Large dimension heavy load industrial steel coil railway trolley cable reel power the steering mechanism runs smoothly and is easy to maintain.

100t industrial material transfer carts, turning coil transfer cart on cement floor is driven by battery, battery pack is today’s prosperous energy, many products will use battery instead of human resources staff, rail flatbed carts do not need to install external wires, also do not Need to be connected to a long line for charging, the choice is the intelligent charger, fill the full automatic power off, do not worry about the battery charge bad, can be used for parallel lines, arcs, curves and other walking, so as to avoid the cable is too long and bring safety hazards.
It is 100t industrial material transfer carts from the track, turning coil transfer cart on cement floor, no cable line restrictions, so the requirements for laying the track is high, the number of times used is not limited, but can not be used in rusty, dusty places, the vehicle is safe to use, speed can be controlled, easy to operate, can not be used in rusty, dusty places.

Workshop light alarm q235 25t rail coil transfer cart is a kind of wheeled transport equipment, with handle, remote control, table, fixed wheels together, walking and turning at will, not restricted by space and ground, can run in the route is not fixed occasions, the cart are equipped with safety warning and safety detection device, encounter pedestrian or The chain should be adjusted to a suitable tightness and flexibility, the chain spring should be installed on the outside, the open end should be opposite to the direction of movement and should not touch the chain cover or crank. If the chain is tight, adjust the chain nut counterclockwise as above to move the rear wheel slightly forward.

Electric Coil Transfer Trolley is suitable for transporting heavy loads in high duty applications. Electric Coil Transfer Trolley also ideal for long distance transportation. The rails are required to be insulated.

35 ton aluminium coil transfer cart trolly has simple structure, strong application level, strong bearing capacity, not afraid of dirt, simple maintenance and long service life. It has the advantages of compact structure, strong bearing capacity, accurate positioning, high automation process, easy operation, smooth turning and driving, strong climbing force, long driving distance, low noise, easy maintenance, remote control, etc. Used for various transportation. Environment, such as high temperature, explosion-proof special occasions, baking paint room, sandblasting room, people do not go, 35 ton aluminium coil transfer cart trolly can go in and work quickly.

50 tons copper mine coil transfer cart is widely used in various factories and industries, such as assembly line (ring production line, grinding production line), metallurgical industry (steel ladle), bearing transportation, shipbuilding industry (maintenance, assembly, container transportation), workshop workpiece transportation, lathe transportation, steel mills (steel structure such as billet, steel plate, steel coil, steel pipe, profile, etc.), Construction (bridges, simple buildings, concrete, concrete columns), oil industry (oil pumps), pumping rods and parts), energy (polysilicon, generators, windmills), chemical industry (electrolytic tanks, burners, etc.), railroads (track maintenance, welding, tractors).

The 40 ton large load coil transfer cart is battery driven, controlled by handle and remote control, and can be pushed forward manually when the equipment is fed or malfunctioned. 40 ton large load coil transfer cart can be automatically cut off when charging is finished. The cart supplier said that it can not be subject to the constraints of running distance, giving the plant transportation layout to facilitate, greatly increasing the scope of operation.
40 ton large load coil transfer cart has a battery to provide power directly to the traction DC motor. DC motor compared with AC motor has the advantages of not easily damaged, large starting torque, and strong overload capacity.

Outstanding was the design and construction of a material handling wire coil transfer cart load of 40 ton, or more specifically, a self-propelled OMNI oriented heavy duty platform cart to manage the movement of molds within the plant. The benefits are safety, faster in-plant mold transport, increased plant productivity and optimized use of space in the mold storage area. We can design roller racks, pallets, and lifting devices to transport materials to match the transfer vehicle according to the customer’s needs and characteristics.

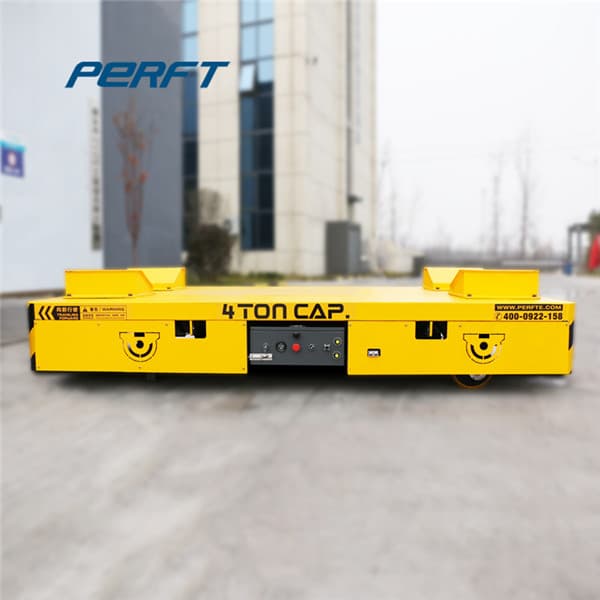

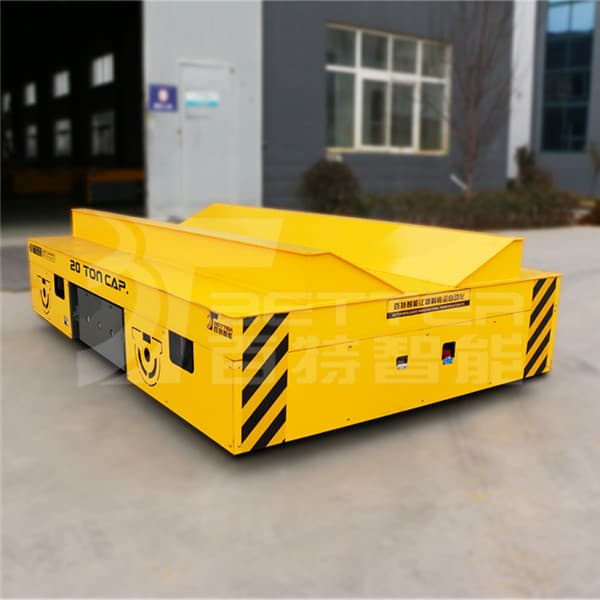

Explosion proof electric coil transfer flatbed cart for spray booths are widely used in construction, steel mills, shipyards, foundries and other fields, and can also be combined with other functions, such as lifting, tilting, weighing systems, etc. The frame uses two longitudinal beams and several beams to make the table face evenly stressed and not deformed. Polishing, dust removal, make the appearance beautiful. Through our understanding and site investigation, through our process design, fire-resistant bricks and heat-resistant fabrics are added to the surface of the trolley to effectively isolate high temperatures. The transmission of logistics temperature can protect the electrical components very well, and the customer is very satisfied.

The 20 tons steel coil transfer carts are designed to handle and transport large payloads efficiently and safely. They can handle a variety of materials such as coils, industrial piping, molds, heavy equipment and structural steel, commonly found in manufacturing plants, chemical plants, warehouses, metallurgical plants and more.

20 tons steel coil transfer carts can help you improve workflow and productivity, reduce potential damage during load transport and improve load visibility.

360 v ac motor coil transfer wagon handing heavy load 8 ton material machine is one of our common and mature
product, which is customized as per customers’ true demand. Such as power supply, operation system,control system, track or no track,steerable, wheelstype, cart framestructure and so on, and then provide proper solution to you.

There are many transfer carts needed in the transportation industry, 50t battery powered coil transfer carts, the structure is somewhat replicated, so the completion period is relatively long, if the urgent need will bring you certain problems, today to introduce you, simple and affordable electric flat car.
50t battery powered coil transfer carts operating system voltage safety, 50t battery powered coil transfer carts on the hydraulic lifting system can be added; can be added to the PLC system to achieve fully automated control, suitable for higher temperatures and harsh environment, due to its simple structure, low cost, is a common transfer vehicle for short distance across the vehicle in the workshop.

Aluminium factory coil transfer cart is not only free from charging, but also can realize automatic charging. Non-working charging is to charge the electric flat car when it is not working, while working state is to charge the battery, charging equipment can be connected automatically, online charging is the automatic charging when the transport vehicle is running, aluminium The factory coil transfer cart has a low power of twenty percent of the total power in normal operation, and the aluminum factory coil transfer cart automatically runs to the charging position to charge itself.
Large tonnage workshop aluminium factory coil transfer cart has locking and unlocking skills when the body stops running, the vehicle can run after unlocking to prevent hidden dangers in accidents, according to the working conditions of the cart to do explosion-proof, high temperature resistance and other processing .
How much is the aluminium factory coil transfer cart, different models, designed with different structures, the price needed will be different, Perfect Transfer Cart Company produces electric flat car, drag chain flat car and other electric series of transfer cart to achieve the liberation of hands, can be in place 360 degrees rotation walking.

The advantages of the remote control coil handling carts are: no cables, not only safer, but also not afraid of smashing, not afraid of hot, does not hinder cross-transportation, easy to realize remote control and automalization, can be driven on curved roads and circular roads, and the number of transformers can be increased without being flat. The limitation of the running distance of the vehicle is very convenient for the transportation plane layout of the plant.

The Radio remote control wire coil 30t trackless transfer cart is becoming increasingly popular for its flexibility, economy and versatility. The radio remote control wire coil 30t trackless transfer cart has a small turning radius and can be rotated freely in 360°. The 30t trackless transfer cart generates little noise during operation and is easy to handle and safe.

Railway electric flat bed trailer for steel foil coils handling with v-frameruns on steel rails or steel square bars. It is commonly used to transfer heavy loads between shops or from shop to warehouse. Used in steel plants, aluminum plants, plastic tube plants, etc. to transfer round materials from the production line to the warehouse.

railway electric flat bed trailer for steel foil coils handling with v-frame,Can be customized, can recommend suitable power supply for customers according to their work site, can be battery power supply, cable reel power supply, busbar power supply, slide rail power supply, towing cable power supply, etc

Coil Railway Transport Vehicle is also known as a railway transport trolley, which is one kind of special transfer trolley. Coil Railway Transport Vehicle is used to transport one coil in the wokshop from one bay to another.

The battery powered trackless coil transfer cart is a trackless material handling cart, which means that the cart can be moved on concrete floors without the need to install tracks. battery powered trackless coil transfer cart transfer cart has at least two casters that allow for 360 degree motorized rotation without any damage to the floor. It is powered by battery, so it can rotate freely without any ropes. The battery powered trackless coil transfer cart is controlled by push buttons and speed controls for forward and reverse, left and right turns. PLC control system can also be added to achieve full automation.

Perfect Transfer Cart offers rail traverser ferry-heavy duty coil transfer cart, Perfect Transfer Cart manufactures rail traverser ferry-heavy duty coil transfer Perfect Transfer Cart’s rail traverser ferry-heavy duty coil transfer cart can be used for various applications such as cargo handling and rail transportation. Cargo transportation and rail transportation ferries can also be used at the same time. Usually, the ferry transfer car is divided into two sections: upper and lower body, one section is used for transferring and one section is used for ferrying. At the same time, we have a professional and excellent team to make three-layer body according to your needs to meet the requirements of the work site. It is widely used in metallurgy, machinery manufacturing, heavy manufacturing, mold manufacturing, steel plate distribution, building materials handling and other industries.

Perfect Transfer Cart Company has designed simple and inexpensive lithium battery steel coil transfer carts for the complicated loading and unloading, steering flexibility, hidden dangers in loading and unloading, transportation, and productivity of bulk materials, fixed-point transportation, repeated transfers, and off-site transfers.

Rail mold handling coil transfer cart warehouse battery motorizeds are available with a number of drive and control systems. Drive systems include gear reducers, shaft drives and single wheel drives. Typical units are equipped with hand-held suspension controls for the operator to control the rail mold handling coil transfer cart warehouse battery motorized back and forth along the track. The average travel speed can be customized to allow the operator to operate the unit on foot with the vehicle. The pendant can be mounted on any of the four corners of the vehicle, allowing the operator to walk along the front of the vehicle during operation. Our rail mold handling coil transfer cart warehouse battery motorizeds also feature semi-automatic and fully automatic control systems to meet the needs of specific applications.

battery operated hydraulic lifting system steel coil trailers material handling equipment has the ability to work smoothly, anti-collision coordination, running distance is not limited, through the motor speed control motor to provide power low noise, strong carrying capacity can save human capital and costs, the operation will not produce exhaust emissions, environmental protection effect is practical and convenient, no special requirements for the track, this is the characteristics of these products, but in the use of the time or to pay attention to a point.
battery operated hydraulic lifting system steel coil trailers material handling equipment is a flat car running on the track with a battery, equipped with a power switch, the battery is installed in the flat car, the switch power supply according to the power system to the traction motor power supply start, stop, forward, reverse, shift, etc..

Automatic charging coil transfer cart 30 tons maintenance free batterys are mainly used to transport metal coils, pipes, beams or other round materials. We can design the capacity of the cart, the size of the table, the power supply style according to your working conditions. In order to protect the round cargo from falling, the plant transfer vehicle can be equipped with a V-bracket according to the customer’s application requirements.
The automatic charging coil transfer cart 30 tons maintenance free battery is an electronic material handling tool for coil transportation. This type of track bogie is usually equipped with a V-shaped or E-shaped frame on the transfer bogie platform. Those V-shaped or E-shaped frames prevent the material from slipping off the rail bogie. V-frame or E-frame can be divided into two types: movable or inactive.
