Heavy Duty Transfer Carts On Rail
China Perfect Transfer Car Factory is dedicated to the manufacture of rail/battery/electric transfer bogie,trackless transfer carts.
China Perfect Handling Equipment Co., Ltd. was established in 2015. It is a material handling machinery manufacturing enterprise integrating scientific research, production and sales. There are more than 100 employees, including 3 senior engineers with intermediate titles, 6 engineers, and 10 technicians. Scientific management, advanced processing technology and innovative manufacturing theories make the company a material handling manufacturing and export base in China.
Perfect Rail Transfer Carts

Rail Transfer Cart

Rail transfer cart is an efficient material transporting cart. Rail Transfer Cart is manufactured with capacities ranging from 0 tons to 1000 tons,  used for many still mills, heavy loads warehouses and many other manufacturing industries.  Rail Transfer Cart feature-complete set of power supply: diesel, battery, electric grid, pneumatic and hybrid power versions. The Rail Transfer Cart is powered by a battery and the turntable is controlled by PLC to realize the accurate rail connection. The turnplate’s power gets from AC power and can turn freely from a different angle.



ADVANTAGE OF RAIL TRANSFER CART

  • Transfer carts can be self-powered or pulled by other machines such as tractors, locomotives, forklifts, etc.

  • Transfer carts with lifting holes for easy loading.

  • Transfer carts with better structure and mechanism.

  • Easy disassembly of the transfer wagon tank.

  • The unlimited running distance of the transfer car.

  • Safe and easy operation of the transfer cart.

  • Cost and labour saving of the transfer car and high safety during use.

  • The frame of the transfer cart is made of steel beams, which has a strong load-bearing capacity and is not easy to bend and deform and prolong the service life.

  • The wheels of the transfer trolley are specially manufactured from cast steel and rubber, which will reduce the impact of the trolley on the ground and protect the wheels and the ground.

  • The turn of the transfer cart is controlled by the traction bar, connected to the four wheels, which greatly shortens the turning radius so that the cart can be used in a narrow space.

Remote Control Self Propelled Electric Motorized Brick Trolley

Model

BXC-2t

BXC-20t

BXC-50t

BXC-100t

BXC-150t

Rated Load(t)

2

20

50

100

150

Table Size(mm)

Length(L)

2000

4000

5500

6500

10000

Width(W)

1500

2200

2500

2800

3000

Height(H)

450

550

650

900

1200

Wheel Base(mm)

1200

2800

4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

2000

2000

Wheel Diameter(mm)

270

350

500

600

600

Wheel Quantity

4

4

4

4

8

Ground Clearance(mm)

50

50

50

75

75

Running Speed(min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kw)

1

2.2

5.

10

15

Max Wheel Load(KN)

14.4

77.7

174

343.8

265.2

Reference Weight(t)

2.8

5.9

8

14.6

26.8

Recommended Rail Model

P15

P24

P43

QU100

QU100

Remark: The product parameters are for your reference, all parts can be customized according to your requirements.

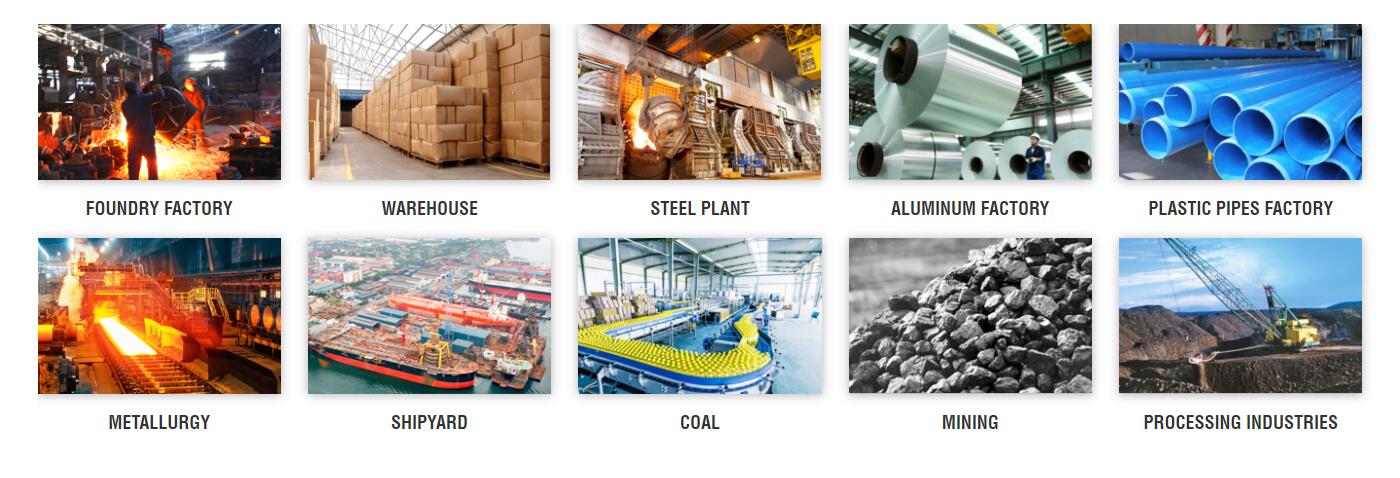

APPLICATION OF RAIL TRANSFER CART:

Rail transfer carts are designed to handle and transport large payloads efficiently and safely. They can handle a variety of materials such as coils, industrial pipes, dies, heavy equipment and structural steel, commonly found in industrial plants, building sites, offshore platforms and vessels, etc. The transfer carts can help you improve workflow and productivity, reduce potential damage during load transport and improve visibility of the load. Rail Transfer Cart with turntable is applied on the automatic assembly line, aeroplane parts assembly, workpiece polish, high-precision welding work etc. Rail Transfer Cart is designed to handle and transport heavy payloads efficiently and safely.

application of rail transfer cart.jpg


CERTIFICATE OF RAITRANSFER CART

Perfect Certification.jpg

CUSTOMER VISIT
